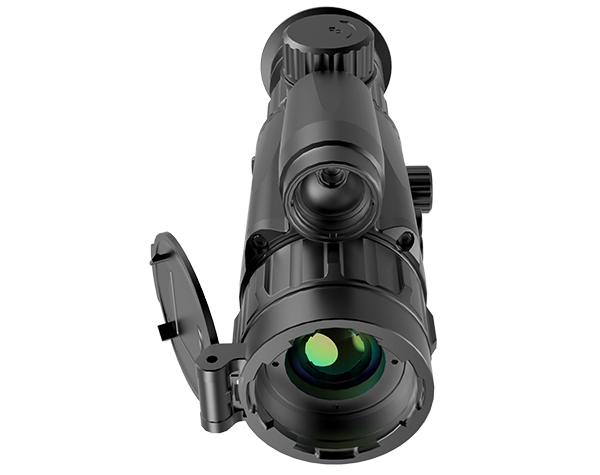

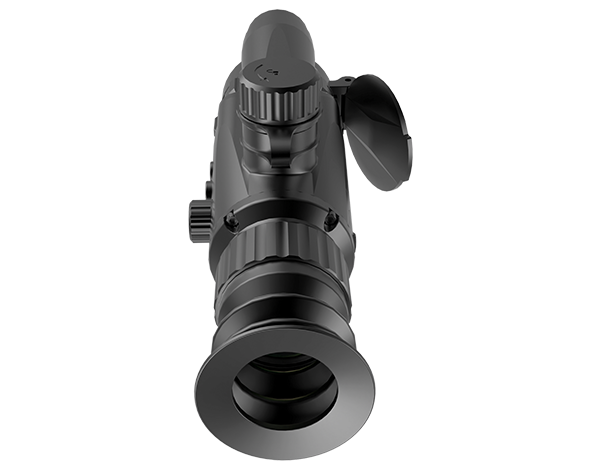

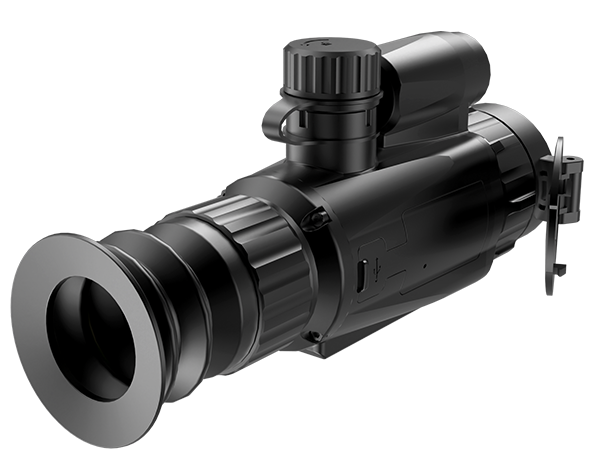

Lightweight and Compact Scope

E325 / E335 / E350 / E625 / E635 / E650

Thermal Imaging Scope

EAGLE SERIES

High-Quality Imaging

Using a 12μm high-performance uncooled infrared detector.Targeted scene algorithm optimization support,with customizable scene settings to meet the needs of all-weather multi-environment observation.

Hot Spot Tracking,
No Fear of High Temperature

Automatic recognition, faster detection, hot spot tracking, more accurate locking.

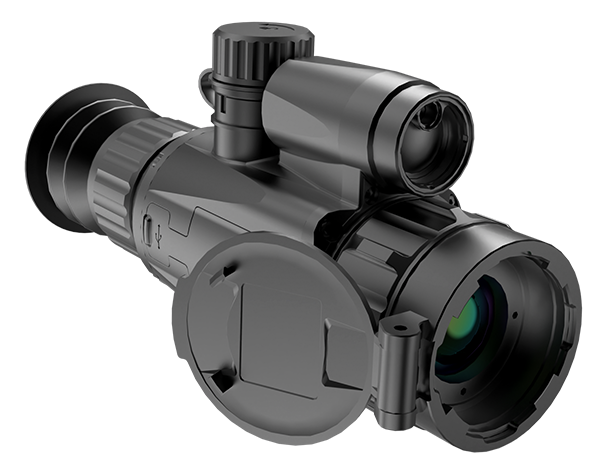

Laser Ranging 1200m

Higher accuracy, longer distance, smaller error.The built-in high-precision laser ranging module can achieve accurate ranging of 1200 meters, and the target distance can be easily obtained.

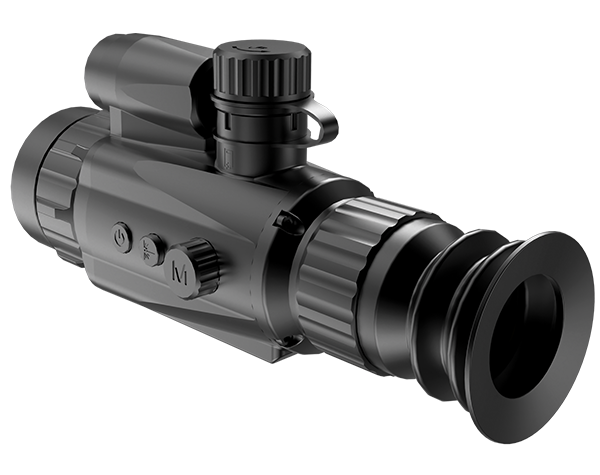

Easy to Operate and User-Friendly

The UI is beautiful, the interaction is concise, and the one-handed operation is smoother The gear knob supports rotation browsing and key confirmation, and the mode switching is smoother.

Specification

Product
E325
E335
E350
E625
E635
E650
Detector 384x288,12μm 384x288,12μm 384x288,12μm 640x512,12μm 640x512,12μm 640x512,12μm
Operating wavelength 8-14μm 8-14μm 8-14μm 8-14μm 8-14μm 8-14μm
Safety Class for Laser Class 1 Class 1 Class 1 Class 1 Class 1 Class 1
Frame rate 50Hz 50Hz 50Hz 50Hz 50Hz 50Hz
NETD <18mk @25℃ F=1.0 <18mk @25℃ F=1.0 <18mk @25℃ F=1.0 <18mk @25℃ F=1.0 <18mk @25℃ F=1.0 <18mk @25℃ F=1.0
Lens 25mm(F1.0) 35mm(F1.0) 50mm(F1.0) 25mm(F1.0) 35mm(F1.0) 55mm(F1.0)
FOV 10.5°x7.9° 7.5°x5.6° 5.3°x3.9° 17.5°x13.1° 12.5°x9.4° 8.8°x6.6°
Min. imaging distance >2.5m >3.5m >5m >2.5m >3.5m >5m
Detection Range 1280m 1800m 2600m 1280m 1800m 2600m
Diopter adjustment ±5 ±5 ±5 ±5 ±5 ±5
Exit Pupil 45mm 45mm 45mm 45mm 45mm 45mm
Power supply 5V DC 2A 5V DC 2A 5V DC 2A 5V DC 2A 5V DC 2A 5V DC 2A
Battery 3400mAh 3400mAh 3400mAh 3400mAh 3400mAh 3400mAh
Battery Operating Time ≥5 h ≥5 h ≥5 h ≥4 h ≥4 h ≥4 h
USB Type-C Type-C Type-C Type-C Type-C Type-C
Operating temperature -20~55℃ -20~55℃ -20~55℃ -20~55℃ -20~55℃ -20~55℃
Storage temperature -40~65℃ -40~65℃ -40~65℃ -40~65℃ -40~65℃ -40~65℃
Humidity ≤90% ≤90% ≤90% ≤90% ≤90% ≤90%
Digital Zoom 1X/2X/4X/8X 1X/2X/4X/8X 1X/2X/4X/8X 1X/2X/4X/8X 1X/2X/4X/8X 1X/2X/4X/8X
Storage 32G 32G 32G 32G 32G 32G
Protection Level IP67 IP67 IP67 IP67 IP67 IP67
Optical magnification 2.4 3.4 4.8 1.4 2.0 2.9
Shock Resistance 1000g/0.4ms 1000g/0.4ms 1000g/0.4ms 1000g/0.4ms 1000g/0.4ms 1000g/0.4ms
Dimension 196x62x90(mm) 196x62x90(mm) 203x66x90(mm) 196x62x90(mm) 196x62x90(mm) 203x66x90(mm)
Weight 600g 600g 620g 600g 600g 620g
