EAGLE-LD SERIES

Thermal Imaging
Scope

Breakthrough Experience

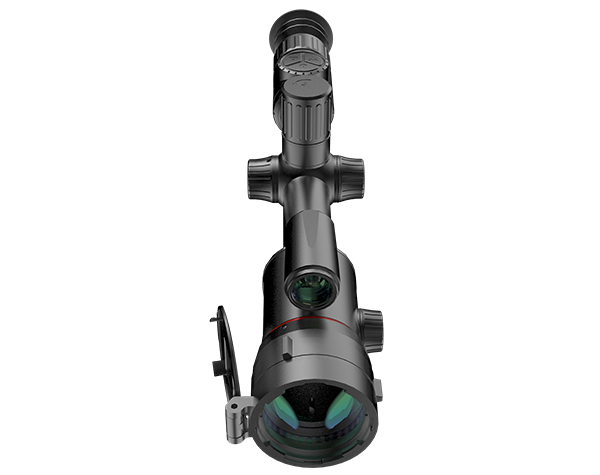

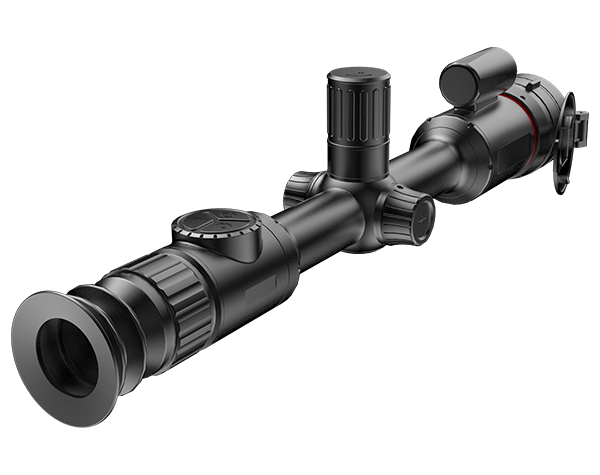

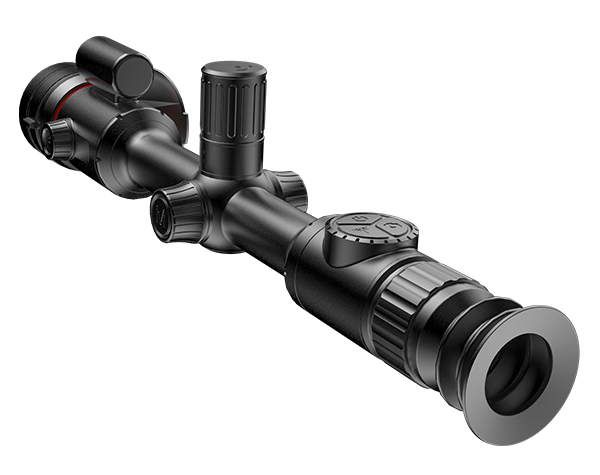

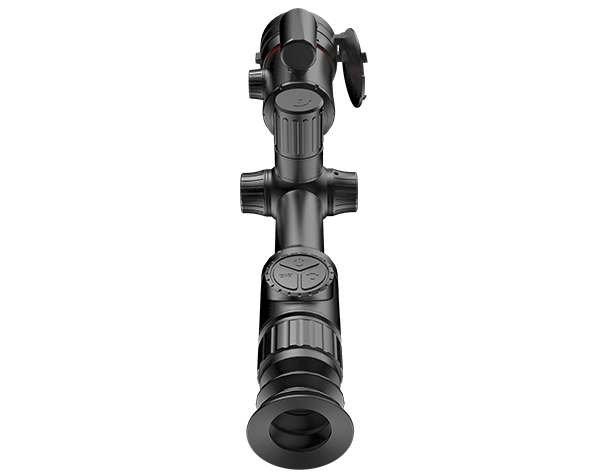

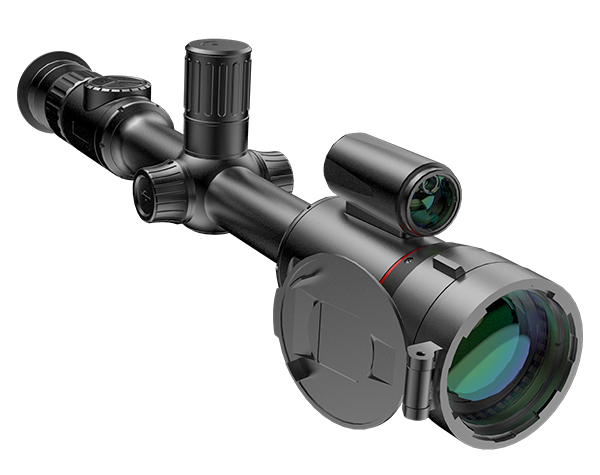

EL360D / EL660D

Thermal Imaging Scope

EAGLE-LD SERIES

High-Quality Imaging

Using a 12μm high-performance uncooled infrared detector. Targeted scene algorithm optimization support,
with customizable scene settings to meet the needs of all-weather multi-environment observation.

Six-axis Stabilization System

Multi-dimensional flip real-time prompts provide a more stable, accurate and reliable operation experience.

Dual FOV Lens Brings
a Breakthrough Experience

Gear knob, slip-resistant, easy to operate, Finger rotation for faster and more precise focusing.

Easy to Record and Share at any Time

Support taking photos and videos, ULIRVISION insight makes sharing easier.

Specification

Product
EL360D
EL660D
Detector 384x288,12μm 640x512,12μm
Operating wavelength 8-14μm 8-14μm
Safety Class for Laser Class 1 Class 1
Frame rate 50Hz 50Hz
NETD ＜18mk @25℃ F=1.0 ＜18mk @25℃ F=1.0
Lens 25mm(F1.0)/ 60mm(F1.2) 25mm (F1.0)/ 60mm (F1.2)
FOV 10.5°x7.9°/4.4°x3.3° 17.5°x13.1°/7.3°x5.5°
Min. imaging distance >2.5m/>5m >2.5m/>5m
Detection Range 1280/3100m 1280/3100m
Diopter adjustment ±5 ±5
Exit Pupil 48mm 48mm
Power supply 5V DC 2A 5V DC 2A
Battery 3350mAh 3350mAh
Battery Operating Time ≥5 h ≥4 h
USB Type-C Type-C
Operating temperature -20~55℃ -20~55℃
Storage temperature -30~65℃ -30~65℃
Humidity ≤90% ≤90%
Digital Zoom 1X/2X/4X/8X 1X/2X/4X/8X
Storage 32G 32G
Protection Level IP67 IP67
Optical magnification 2.4/5.8 1.4/3.5
Shock Resistance 1000g/0.4ms 1000g/0.4ms
Dimension 427x102x76(mm) 402x102x76(mm)
Weight 1200g 1200g
