FORESIGHT-D SERIES

Thermal Imaging
Monoculars

Well-Equipped

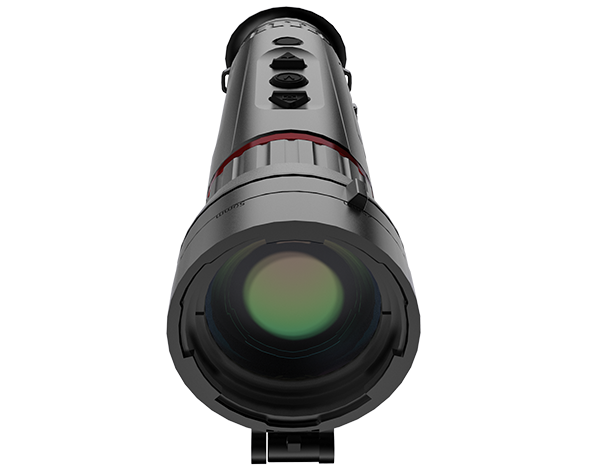

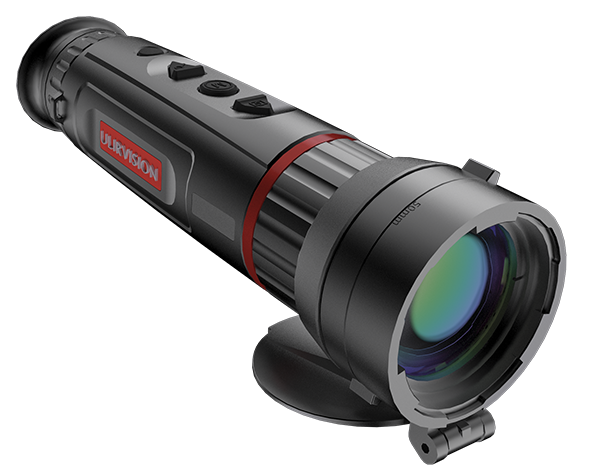

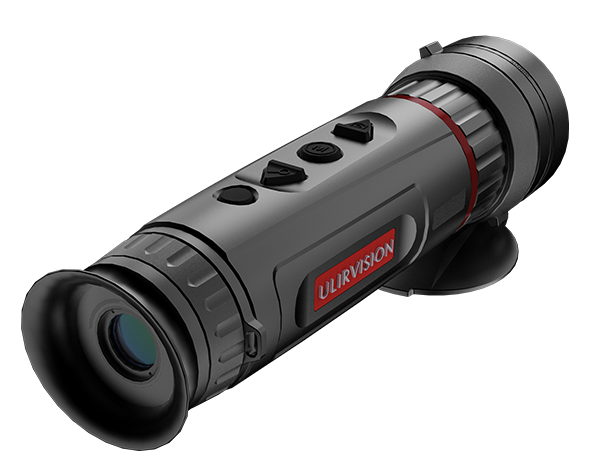

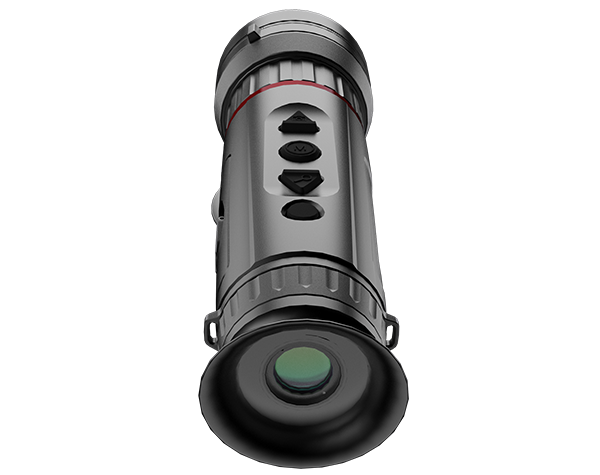

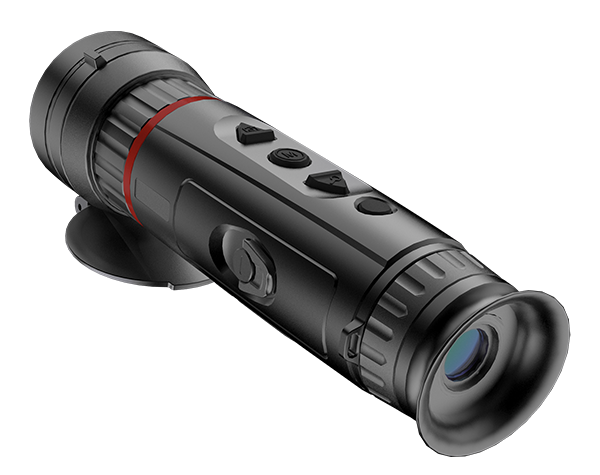

F350D / F650D

Thermal Imaging Monoculars

FORESIGHT-D SERIES

One Lens with Two FOV,
Break Through Limitations

25mm end - 50mm end, instantly switch perspectives, enjoying 2x optical zoom.
Capture the whole scene for more flexible searching; grasp details for more precise targeting.

Automatically Estimate
the Target Distance

According to the size of the measured target, the target distance is estimated by the algorithm.
The maximum error per kilometer is < 1m.

Customizable Function Keys
More Than Just Conveniente

Excellent UI interactive interface + freely definable function keys to create an exclusive observation experience

Lightweight and Portable,
Always in Control

Compact size, easy to carry, one-handed operation, easier observation

Specification

Product
F350D
F650D
Detector 384x288,12μm 640x512,12μm
Operating wavelength 8-14μm 8-14μm
Frame rate 50Hz 50Hz
NETD ＜18mk @25℃ F=1.0 ＜18mk @25℃ F=1.0
Lens 25mm (F1.0)/ 50mm (F1.1) 25mm (F1.0)/50mm (F1.1)
FOV 10.5°x7.9°/5.3°x3.9° 17.5°x13.1°/8.8°x6.6°
Min. imaging distance >2.5m/ >5m >2.5m/>5m
Detection Range 2600 2600
Diopter adjustment ±5 ±5
Exit Pupil 19mm 19mm
Power supply 5V DC 2A 5V DC 2A
Battery 3400mAh 3350mAh
Battery Operating Time ≥5 h ≥4 h
USB Type-C Type-C
Operating Temperature -30~55℃ -30~55℃
Storage temperature -30~65℃ -30~65℃
Humidity ≤90% ≤90%
Digital Zoom 1X/2X/4X/8X 1X/2X/4X/8X
Storage 32G 32G
Protection Level IP67 IP67
Optical magnification 2.4/4.8 1.4/2.9
Dimension 217x64x64(mm) 217x64x64(mm)
Weight 595g 595g
